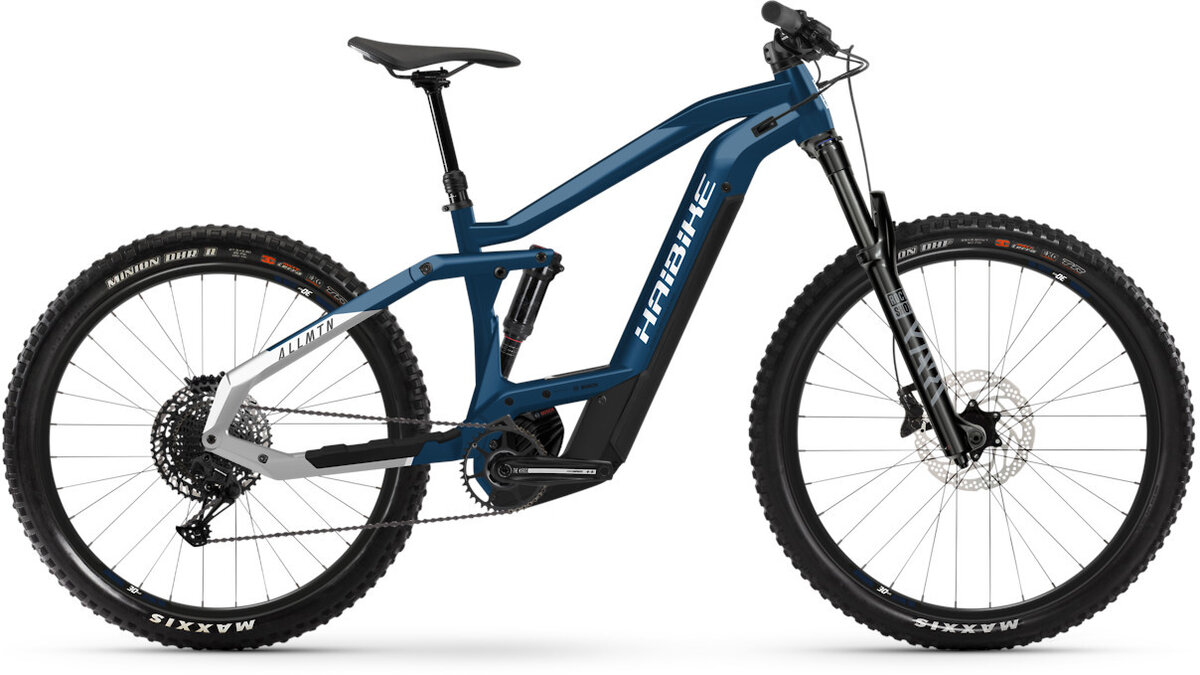

Haibike ALLMTN 3

Haibike ALLMTN 3
$5,795.00
Please select options

Details

An all-round e-mountain bike for every terrain: the XDURO AllMtn 3.0! 150mm travel, full suspension, and a powerful Bosch Performance CX motor make for top performance even over challenging terrain. The 650 Wh battery expands your eMTB experience to new levels. Different wheel sizes round off the package: 29" wheels at the front offer precise and comfortable rollover behavior, while the 27.5" wheels at the back give the eMTB perfect traction to master the steepest uphill and downhill slopes.

FRAME
Aluminum 6061, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm
REAR SHOCK
RockShox Deluxe RT, air
FORK
RockShox Yari RC Lockout, air, Travel: 160mm, aluminum steerer tube 1 1/8" - 1 1/2" tapered, thru-axle Boost
HEADSET
A-Head Tapered
CRANKS
Haibike forged aluminum
SPROCKET
Sram X-SYNC 2, 38 teeth, steel for Bosch direct mount
BOTTOM BRACKET
*
FRONT DERAILLEUR
*
REAR DERAILLEUR
SRAM SX Eagle, 12-speed
SHIFTER
SRAM SX Eagle, trigger
COGSET
SRAM PG1210, 11-50 teeth
CHAIN
SRAM SX Eagle
FRONT HUB
Shimano MT400, 15mm thru axle, Centerlock disc, 32h
REAR HUB
Shimano MT400, 12mm thru axle, Cassette, Centerlock disc, 32h
SPOKES
Stainless Steel, black
RIMS
Alex MD30, eyed, double-walled rim, aluminum
TIRES
Maxxis Minion DHF, 29" x 2.50" / Maxxis Minion DHR II, 27.5" x 2.80"
BRAKE LEVERS
Shimano MT401 Hydraulic
PEDALS
MTB Platform pedal aluminum
HANDLEBAR
Haibike Components TheBar ++ 780mm
GRIPS
Haibike MTB
STEM
Haibike Components TheStem 2, A-head, Bar bore: 31.8mm
SEAT
Selle Royale Vivo
SEATPOST
XLC, Remote, telescope, 31.6mm
DETANGLER
*
EXTRAS
*
TAPE
*
BATTERY
Bosch PowerTube 625Wh
CHARGER
Bosch quick charger 4A
MOTOR
Bosch Gen4 Performance CX, 250W, 75Nm, 20 mph
DISPLAY
Bosch Purion
BRAKES
Shimano MT420, Hydraulic disc, 4 Piston, 203mm / 180mm F/R rotors
PRODUCT ID
4700

Part Numbers

Option MPN Store SKU
Small ALLMTN3SML 210000003679
Medium ALLMTN3MED 210000003680
