Unleash your passion for adventure with long distance refinement, impressive efficiency, and the massively powerful and super silent All-New PW-X3 drive unit to electrify your ride.

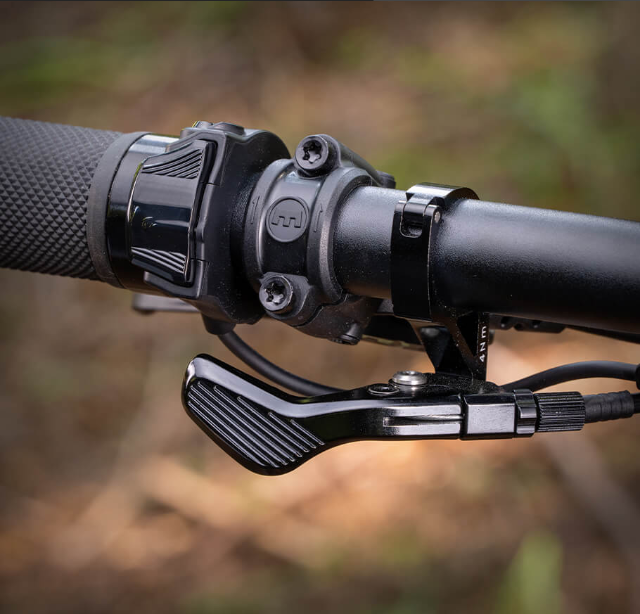

All-New YAMAHA Interface X control switch is a minimalist and ergonomic design which easily accesses the 5 support modes, walk assist and automatic support modes all in a clean handlebar aesthetic.

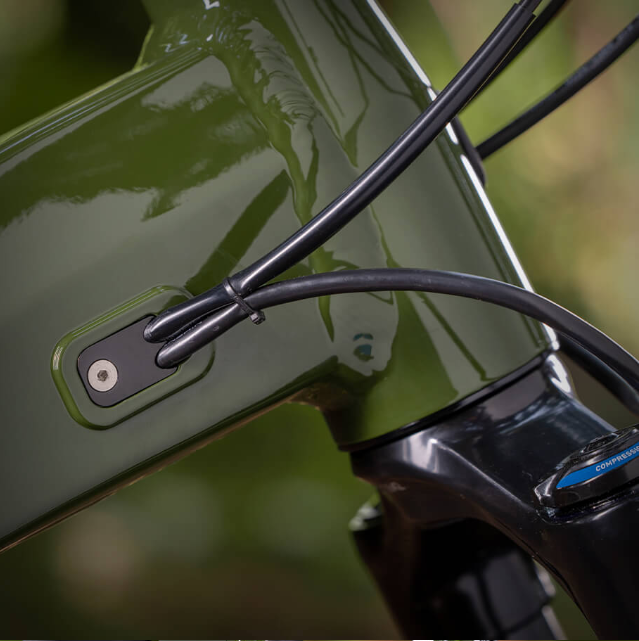

Internal Cables and Housing minimize exposure to harsh riding conditions and help maximize time between service schedules.

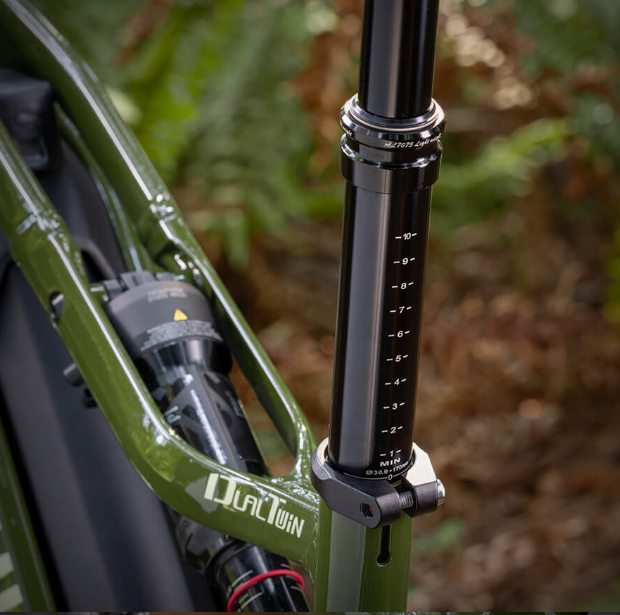

More internal technology than your over-priced ergonomic office chair, the travel distance on this dropper post was specially selected for every frame size to match rider size with the trail's demands.

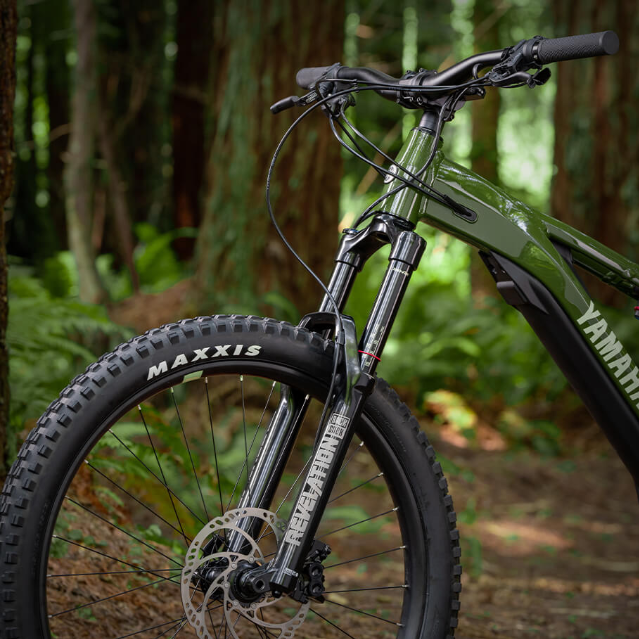

The long-travel and ultra-strong 160mm fork absorbs bumps like a sponge to increase riding confidence even on the most challenging trail terrain.
Everything you would expect from a Yamaha. Massive power, lip-snarling responsiveness, and impressive efficiency all in a lighter and smaller package now with Garmin Edge 530, Edge 830 and Edge 1030 compatibility.

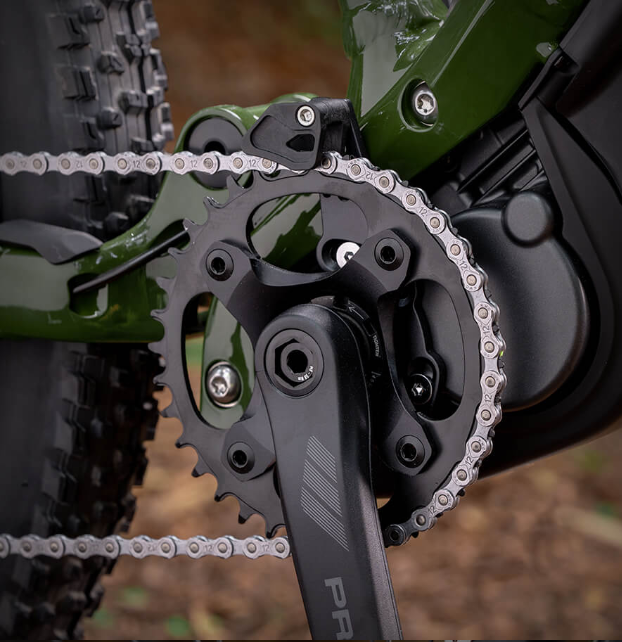

Directly bolted to the PW-X3 drive unit, this ISCG05 chain guide will help keep the chain in place even under the gnarliest conditions.

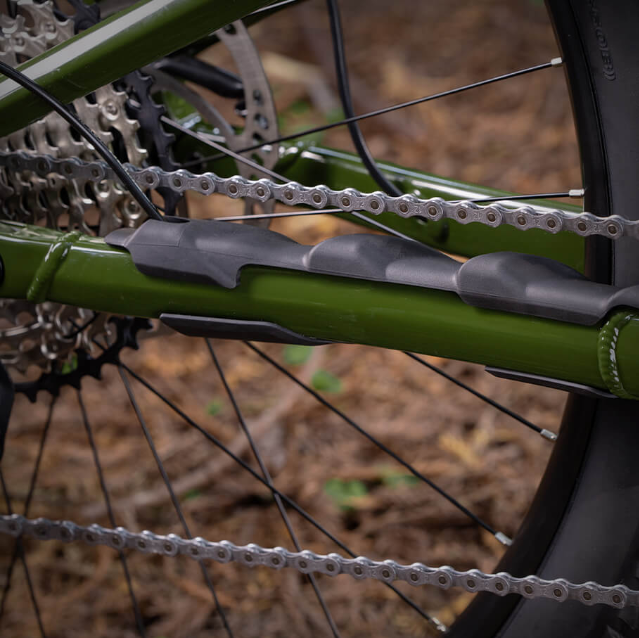

This burley and robust chainstay protector is proprietary design by YAMAHA engineers to protect the frame from chains lapping chips to your beautiful paint job.
The combined hydroforming and forging construction techniques created in Yamaha's patented Dual Twin frame protects components and delivers the ultimate in handing and control.

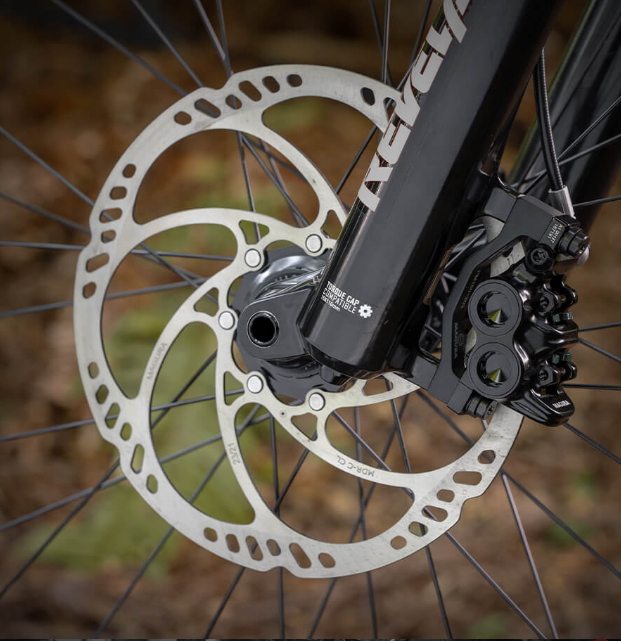

With powerful two-finger brake levers and one-piece caliper construction, your bike might be two-tired but your forearms won't be.
|Suggested Use||All Mountain Class-1 Ebike Off-Road Trail Use|
|Size||Small, Medium, Large|
|Total Weight||51.1 lb (Medium)|
|Motor||YAMAHA PW-X3 Class 1 Labeled, Centermount ISIS Splined Crankarm Spindle, YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes, Rated power: 250W (nominal), 500W(maximum), Max torque: 85Nm, Max speed support: 20MPH, Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist|
|Control Switch||YAMAHA Interface X Control functions include: 3-color LED support-mode level light indicator, (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator) and Walk Assist mode (Purple LED indicator), Bluetooth™ connectivity, 3-color LED support-mode level light indicator, LED brightness adjustability, battery capacity (4-LED capacity indicators)|
|Battery||Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Anti-Vibration Mounting Plate, Weight: 6.61 lbs, 500Wh 36V, Re-charge time: 1-hour 80%, 4-hour 100%|
|Frame||YAMAHA Dual Twin Frame, Tapered Headtube, Internal cable/housing routing, 2-bolt drive unit mount, 12x148 rear axle spacing, Integrated YAMAHA speed sensor harness|
|Fork||ROCKSHOX REVELATION RC, 160mm TRAVEL, 35mm Stanchion eMTB rated Motion Control damping with low-speed compression adjustment DebonAir air spring|

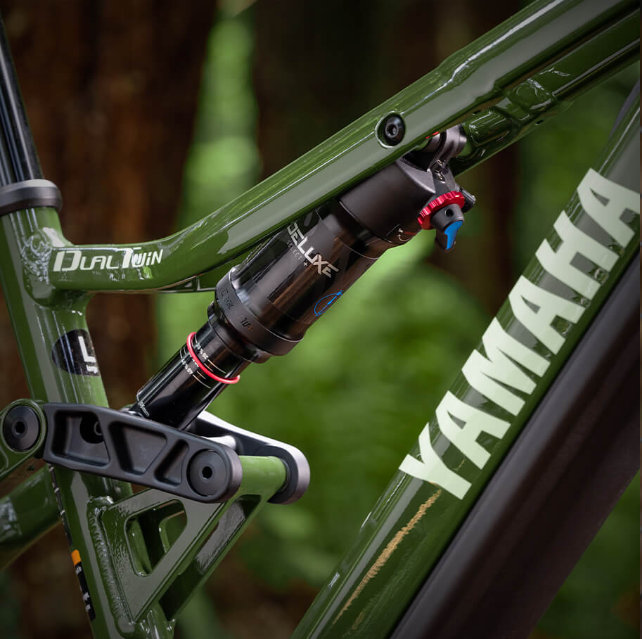

|Rear Shock||ROCKSHOX DELUXE SELECT +, 150mm travel, 210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment|
|Headset||Integrated 1 1/8"|
|Stem||Alloy, 4-both faceplate, 35.0 diamete,r 40mm length|
|Handlebar||Alloy, 35.0 diameter, 780mm width 30mm rise|
|Grips||VELO Single Ring Locking|
|Seatpost/Saddle Clam||ANZX 30.9 dia. TRAVEL (S) 125mm (M) 150mm (L) 170mm|
|Seatpost Collar||Single-bolt 35.0mm|
|Saddle||YAMAHA anti-slip finish with hand rail tail|
|Axles||MAXLE 15MM X 110MM BOOST THRU AXLE|
|Shifters||Shimano DEORE SL-M6100-R|
|Rear Derailleur||Shimano DEORE RD-M6100-SGS|
|Crankarm||PRAXIS E-CRANK ARM 165mm LENGTH|
|Chain||KMC eTURBO EPT 122 links|
|Cassette||Shimano SLX CS-M7100-12 12-spd (10-51T)|
|Brakes/Rotors||MAGURA MT30 (F) 4-PISTON (R) 2-PISTON 203MM CENTER LOCK ROTOR (F/R) Two-finger lever|
|Rims||YAMAHA 27.5+ Alloy Tubeless tape installed Width: 46mm (outside) 40mm (inside|
|Spokes||14g alloy SUS304|
|Hubs||Anodized Alloy, Centerlock brake mount, 15x110mm BOOST+ (front) 12x148mm MicroSpline freehub, Quick Release Thru Axle Type|
|Tires/Tubes||MAXXIS 27.5X2.6 (F) MINION DHF (R) REKON|
|Accessories||Protective motor and battery covers ISCG05 chainguuide Safety bell VP Acrylic pedals (No Keys)|
|Warranty||3-Year on Frame, Motor, Battery* Component Manufacturer’s warranty** is supported by YAMAHA|
* Subject to change without notice.
|Forest Green / Medium||YMORO5MFRG||210000004103|
|Forest Green / Large||YMORO5LFRG||210000004104|
