Details

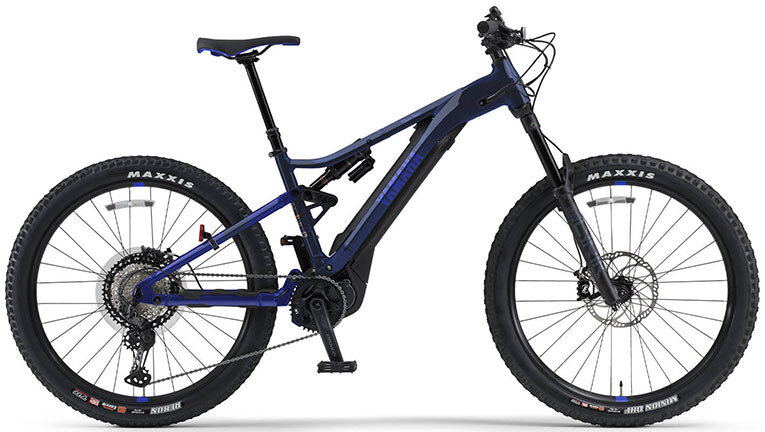

Fortune tellers will be looking for new jobs when this bike hits your trails. With geometry enchanted to help you predict the future and power delivery characteristics that will raise your spirits, the YDX-MORO 07 will inspire you to go for one more loop.
Whether you’re challenging your physical endurance in ECO mode or discovering the place where ultimate control and performance meet the trail in EXPW mode, the super minimalist communication display of the Interface X is there for what you need and nothing you don't.
This buttery smooth rear shock with 15 clicks of rebound adjustment, dual-level compression quick switch, and adjustable air pressure options result in a positively bespoke suspension experience.

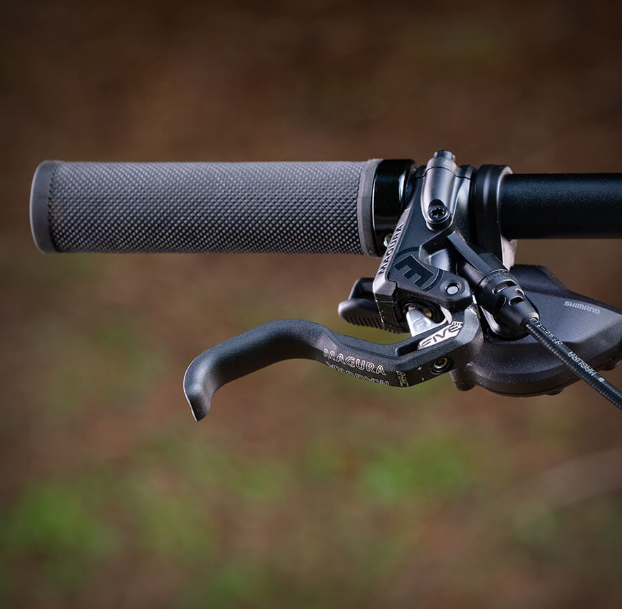

Outstanding stopping performance with the absolute best possible modulation requires only one finger. Feel the ultimate braking power of one-piece construction in the 4-Piston front and rear calipers paired with radial design master cylinders.

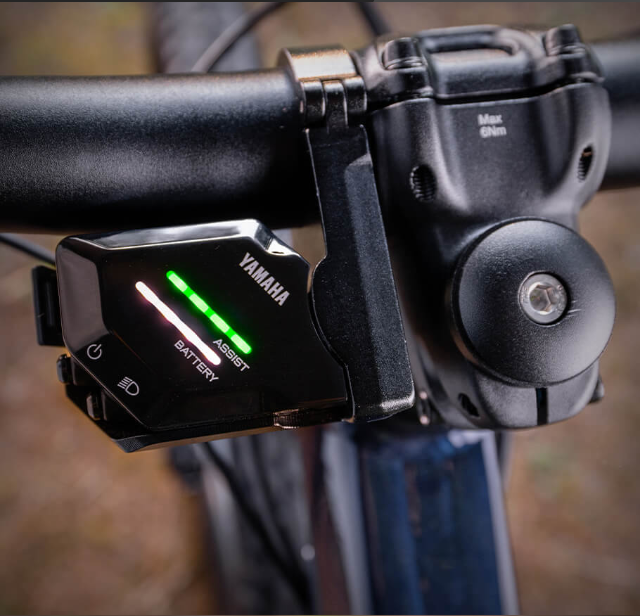

Minimalist aesthetics require unquestionably exceptional design to meet functional performance requirements. The All-New Interface X meets those demands with intuitive movements to access power assist levels, walk assist, and automatic support modes in a bantam weight class.

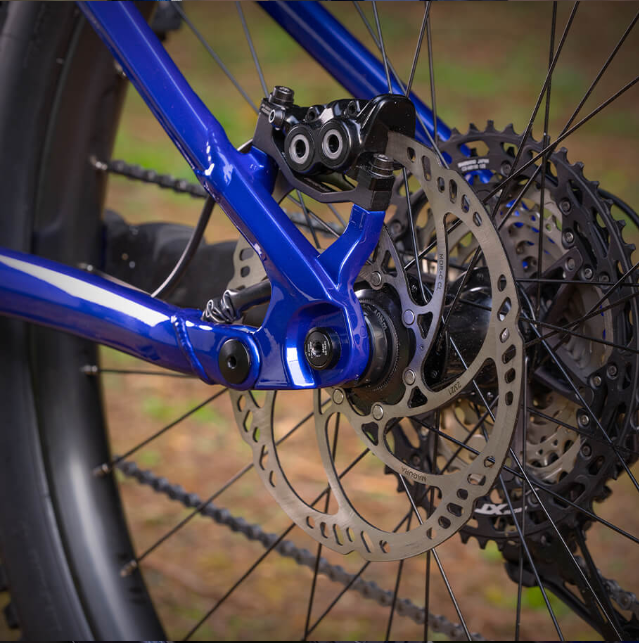

Helping to deliver the most smooth and powerful assist available today, our PW-X3 Quad Sensor's rear hub speed sensor is high technology hidden in plain sight.

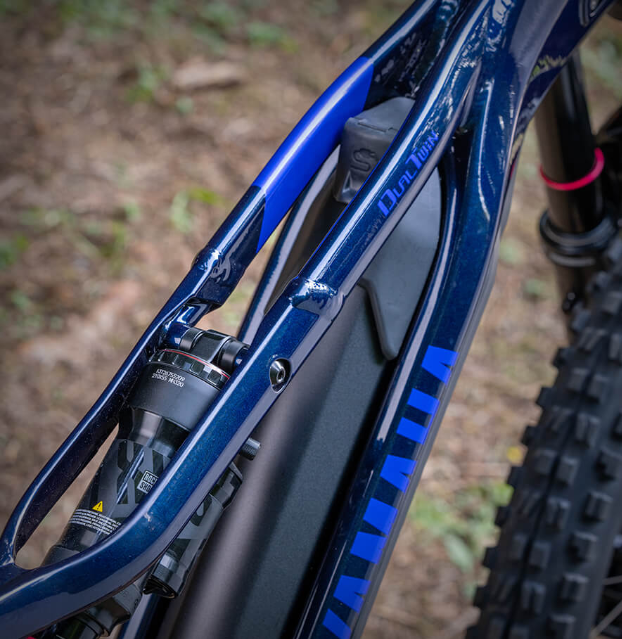

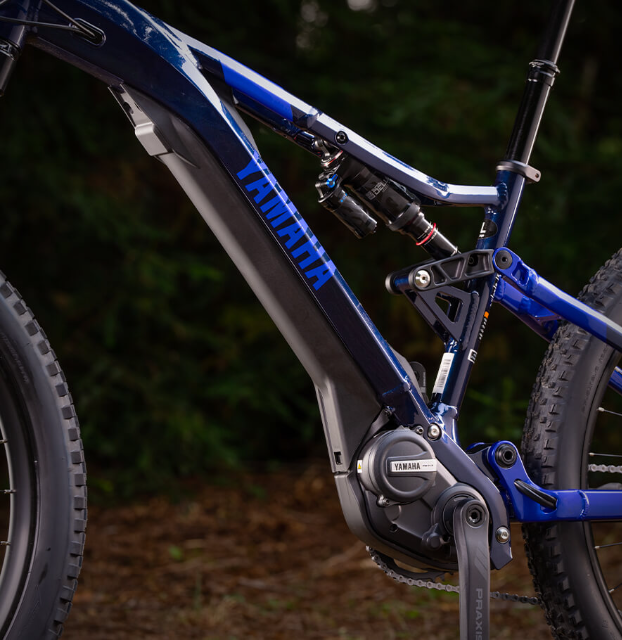

Your frame is the most powerful structure of your bicycle. Yamaha's patented Dual Twin construct combines hydroforming and forging techniques to create a frame to protect components with uncompromised riding control.

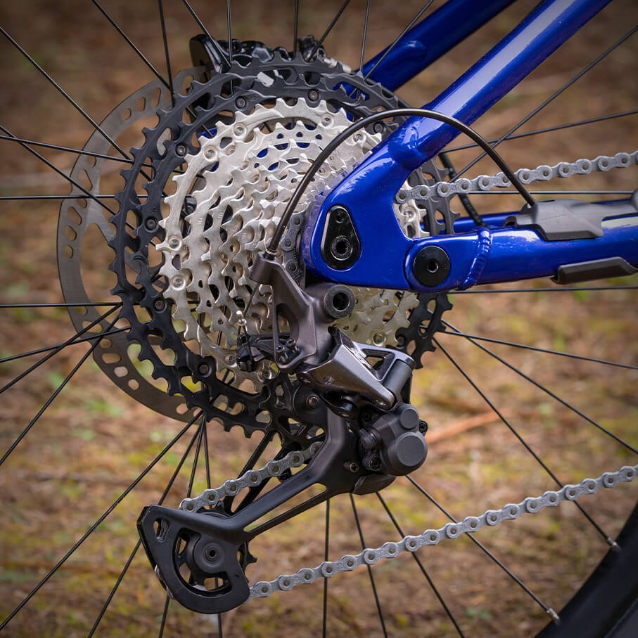

Increased shifting precision with reduced derailleur travel and additional gears in the "sweet spot" for riders to find the best balance of power and cadence.

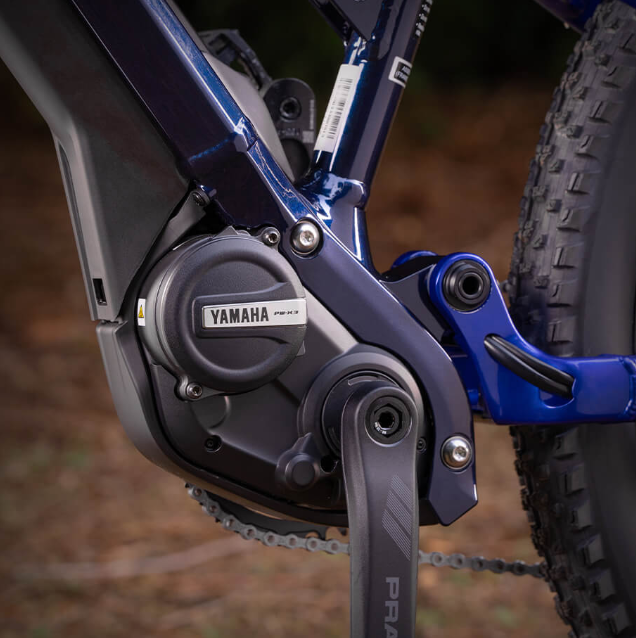

ALL-NEW PW-X3 mid drive motor is our smallest and lightest to date and ensures you the best power to weight ratio with jaw dropping responsiveness and smooth power delivery now with Garmin Edge 530, Edge 830, and Edge 1030 compatibility.
A combination that creates a near-perfect weight distribution for ultimate control on the ground or in the air.
Specs
Suggested Use | All Mountain Class-1 Ebike Off-Road Trail |
---|---|
Colors | Dual Blue, Raven Silver |
Size | SMALL, MEDIUM, LARGE |
MSRP | $6,399 |
Total Weight | 51.3lb (M) |
Motor | YAMAHA PW-X3 Class 1 Labeled Centermount, ISIS Splined Crankarm Spindle, YAMAHA Quad Sensor with Automatic Support and Walk Assist Modes, Rated power: 250W (nominal), 500W (maximum); Max torque: 85Nm; Max speed support: 20MPH; Support Modes: ECO, Standard, High, MTB, Extra-Power, Automatic, Walk Assist |
Control Switch | YAMAHA Interface X Control functions include: 3-color LED support-mode level light indicator, (5) Support-mode control switch, plus AUTOMATIC support mode (Aqua LED indicator) and Walk Assist mode (Purple LED indicator), Bluetooth™ connectivity, 3-color LED support-mode level light indicator, LED brightness adjustability, battery capacity (4-LED capacity indicators) |
Battery | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display; Anti-Vibration Mounting Plate; Weight: 6.61 lbs; 500Wh 36V; Re-charge time: 1-hour 80%, 4-hour 100% |
Frame | YAMAHA Dual Twin Frame Tapered Headtube; Internal cable/housing routing; 2-bolt drive unit mount; 12x148 rear axle spacing; Integrated YAMAHA speed sensor harness |
Fork | ROCKSHOX LYRIK SELECT; 160mm TRAVEL; 35mm Stanchions; Charger RC damper with Low-speed Compression and Reboundadjust; Compatible with RockShox premium short fender Upgradeable to new Pressure Relief Values via RockShox |
Rear Shock | ROCKSHOX SUPER DELUXE SELECT + Custom tuned for YAMAHA YDX-MORO 07; 150mm travel; 210X55mm DebonAir+ air spring with 15 clicks of rebound adjustment, 2-position compression adjustment |
Headset | Integrated tapered 1 1/8” - 1 1/2” (30mm of spacers) |
Stem | Alloy 4-both faceplate; 35.0 diameter; 40mm length |
Handlebar | Alloy; 35.0 diameter; 780mm width; 30mm rise |
Grips | VELO Single Ring Lock |

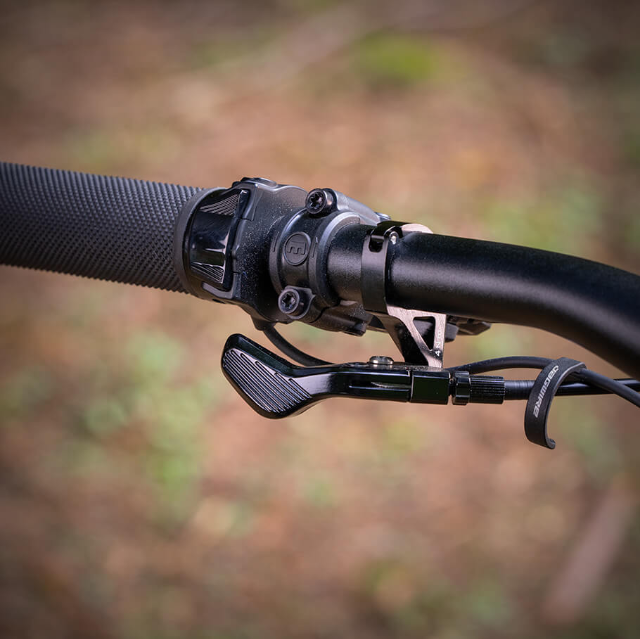

Seatpost/Saddle Clam | RANZX dropper post 30.9 dia. TRAVEL (S) 125mm (M) 150mm (L) 170m |
Seatpost Collar | Single-bolt 35.0mm |
Saddle | YAMAHA anti-slip finish with hand rail tail |
Axles | MAXLE 15MM X 110MM BOOST THRU AXLE |
Shifters | Shimano XT SL-M8100-R |
Front Derailleur | N/A |
Rear Derailleur | Shimano XT RD-M8100-SGS |
Crankarm | PRAXIS E-CRANK ARM 165mm LENGTH |
Chain | KMC eTURBO EPT 122 links |
Cassette | Shimano XT CS-M8100-12; 12-spd (10-51T) |
Chainring | PRAXIS 36T |
Brakes/Rotors | MAGURA MT5 4-PISTON F/R 203MM CENTERLOCK ROTOR (F/R); Single-Finger lever |
Rims | YAMAHA 27.5+ Alloy; Tubeless tape installed; Width: 46mm (outside) 40mm (inside) |
Spokes | 14g alloy SUS304 |
Hubs | Anodized Alloy; Centerlock brake mount; 15x110mm BOOST+ (front) 12x148mm MicroSpline freehub Quick Release Thru Axle Type |
Tires/Tubes | MAXXIS 27.5X2.6 (F) MINION DHF (R) REKON |
Accessories | Protective motor and battery covers; ISCG05 chainguuide; Safety bell; VP Acrylic pedals (No Keys) |
Warranty | 3-Year on Frame, Motor, Battery* Component Manufacturer’s warranty** is supported by YAMAHA |
* Subject to change without notice.
Videos
Yamaha YDX-Moro 07
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Dual Blue / Small | YMORO7SDBL | 210000004096 |
Dual Blue / Medium | YMORO7MDBL | 210000004097 |
Dual Blue / Large | YMORO7LDBL | 210000004098 |
