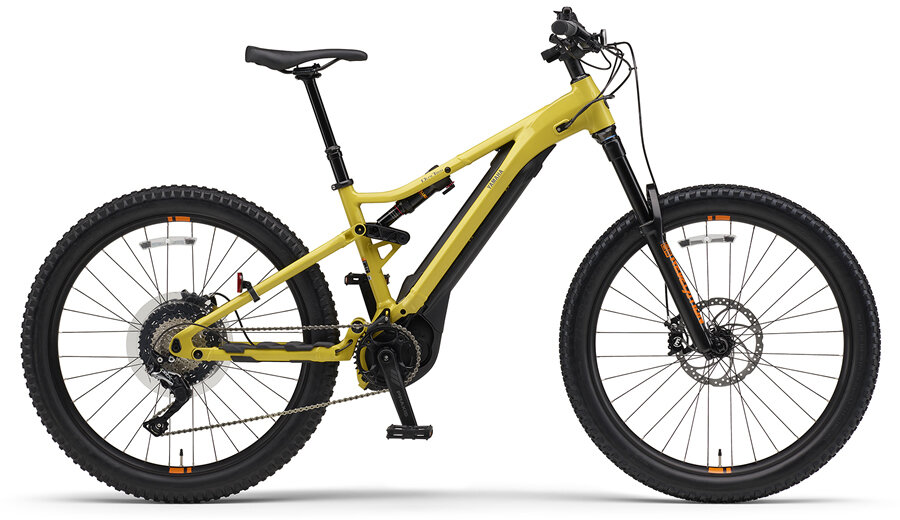

Yamaha YDX Moro

Yamaha YDX Moro
$4,795.00
Please select options

Details

As a kid, it was all about cotton candy, the giant lollipop, and taffy. Now, the stickiness you crave is for more traction on the trail. The low center of gravity and always-active suspension of the YDX-MORO will keep your tread firmly planted corner after corner after corner. Even if you're riding with your dentist.

The Yamaha YDX Moro features the new PW-X2 drive unit with an inclination sensor for use with the new Auto support mode, new helical driven gears for less noise, updated programming to support an increased cadence support (now up to 170rpm) and an added walk-assist feature.

Combining hydro-forming and forging techniques, Yamaha’s patent-pending Dual Twin™ frame design provides precise handling and surrounds both rear shock and battery resulting in security, protection and a low center of gravity full suspension frame.

Specs

Suggested Use All-Mountain
Colors Desert Yellow
Size Small, Medium, Large
MSRP $4,795
Total Weight 53.3lb (M)
Motor PW-X2, Center Mount, ISIS Splined Spindle, Quad Sensor System with integrated speed sensor as part of the rear hub, Weight: 6.83lb, Rated Power: 250W (Nominal), 500W (Max), Max Torque: 80Nm, Max Cadence Support: 170rpm, Max Speed Support: 20mph, Support Modes: ECO, STD, HIGH, EXPW, AUTOMATIC (ECO-STD-HIGH), Protective motor cover included
Control Switch Computer control functions include: (5) Power-level control switch, plus AUTOMATIC support mode, control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, 3-color LED power assist level light indicator and push assist button Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display, Multilocation with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time
Frame Yamaha Dual Twin Frame, Tapered headtube, Internal cable/housing routing, 2-bolt motor mount, 12 x 148 rear spacing, Integrated speed sensor harness
Fork RockShox Revelation RC Boost 160mm, Tapered aluminum steerer, 1 1/8in - 1 1/2in
Rear Shock RockShox Deluxe Select +, 210mm/55mm, 150mm travel
Headset Integrated tapered headset with headset spacers
Stem Yamaha Alloy 4-bolt faceplate, 35.0 diameter, 40mm length
Handlebar Alloy 30mm riser bar, 35.0mm diameter, 780mm width
Grips/Tape Locking Dual Core
Seatpost/Saddle Clam Alloy 30.9mm dropper post (S/M), 125mm travel, (L) 150mm travel
Seatpost Collar Single-bolt 35.0mm
Saddle Yamaha Anti-slip finish with hand rail tail
Shifters Shimano SLX 11-speed
Front Derailleur N/A
Rear Derailleur Shimano SLX Long-Cage
Crankarm PRAXIS ISIS 170mm
Chain KMC e11 Turbo
Cassette Shimano SLX 11-speed 11/46T
Chainring Praxis Wave 36T 104 BCD
Brakes/Rotors Magura MT30 Front: 4-piston Rear: 2-piston 203mm, Storm CL Rotors
Rims Yamaha 27.5+ Alloy, Tubeless tape installed, Width: 46mm (OUTSIDE) 40mm (INSIDE)
Spokes Spokes SUS304
Spoke Nipples Brass
Hubs Anodized, Centerlock brake mount, Front hub 15 x 110 Boost, rear hub 12 x 148, Hyperglide freehub and Yamaha Bicycles Speed Sensor
Tires/Tubes Rear: CST Patrol 27.5 x 2.8in, Front: CST BFT 27.5 x 2.8in, Tubeless compatible rim, Tubeless compatible rim strip
Accessories Bell (No keys)
Warranty 3-Year on Frame, Motor, Battery* Component Manufacturer's warranty** is supported by Yamaha

* Subject to change without notice.

Videos

Yamaha YDX MORO

Part Numbers

Option MPN Store SKU
Medium YMOROSMYLW 210000003363
Large YMOROSLYLW 210000003364
