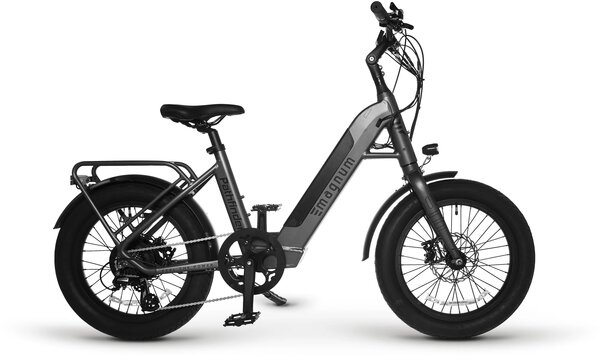

Magnum Bikes Pathfinder T
Details
A bike for all uses! The Magnum Pathfinder T is a versatile e-bike for commuting, recreation, exercise and more. The unisex step-through frame accommodates riders of all sizes and abilities. Includes Torque pedal assist for extra control.
Highlights:
- Category: Fat Tire
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Gravel / Paved / Snow
THE BATTERY.
The heart of the Magnum Pathfinder T is the integrated, long-range 48V / 17.5Ah / 840Wh battery that powers rides up to 55 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
17.5Ah
55 miles (89 Kilometers) Max Range
8.75 Hours Charge Time
TORQUE SENSOR PEDAL ASSIST
Pedal Assist for smoothness and control
The Torque Sensor Pedal Assist amplifies the rider’s power on the pedals with electric motor power to produce a feeling of smoothness and control.
| Seat Tube | 15.75" (40 cm) |
|---|---|
| Reach | 17" (43 cm) |
| Stand Over Height | 16" (40 cm) |
| Virtual Top Tube Length | 24" (61 cm) |
| Min Saddle Height | 20.5" (52 cm) |
| Max Saddle Height | 29.5" (75 cm) |
| Width | 24" (61 cm) |
| Wheelbase | 43" (109 cm) |
| Length | 63.75" (162 cm) |
| Total Weight | 62 lbs (28 kg) |
| Battery Weight | 7.5 lbs (3.4 kg) |
| Recommended Minimum Rider Height | 4’10" |
Specs
| Fork | Rigid Aluminum Alloy |
|---|---|
| Stem | Adjustable Aluminum Alloy |
| Tires | CST Big Boat 20" x 3" |
| Brakes | Hydraulic Disc Brakes |
| Saddle | Velo Gel Comfort |
| Crankset | Aluminum Alloy, 44T, 165mm |
| Shifters | Shimano 7-Speed |
| Tape/Grips | Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle |
| Accessories & Extras | Rear rack, front and rear lights included, Center-Mounted Single Side Kickstand, Fenders: Includes Front and Rear, Bottle Cage and Front Carrier Mounts |
| Motor | Rear Gear Hub-Drive Motor 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle. |
| Pedals | Wide Plastic Platform with Reflectors |
| Battery | 48V, 17.5Ah, 840Wh |
| Charger | 48V / 2A, 25-60miles per charge |
| Controller/Display | Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed. Torque Sensing Pedal Assist, Twist Throttle, Walk Mode. |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Slate / Small / 20-inch | 745808932671 | 210000003664 |
| Snow / Small / 20-inch | 789554756037 | 210000003667 |
