Yamaha Wabash RT

Yamaha Wabash RT
$4,095.00
Please select options

Details

The world might not revolve around us, but it can revolve under us.

Introducing the Wabash RT. Built tougher-than-dirt with the all-new Yamaha PWSeries ST drive unit and all-new frame with integrated battery, this performance drop-bar gravel bike is designed for long hauls off-road and adventurous attitude on all roads.

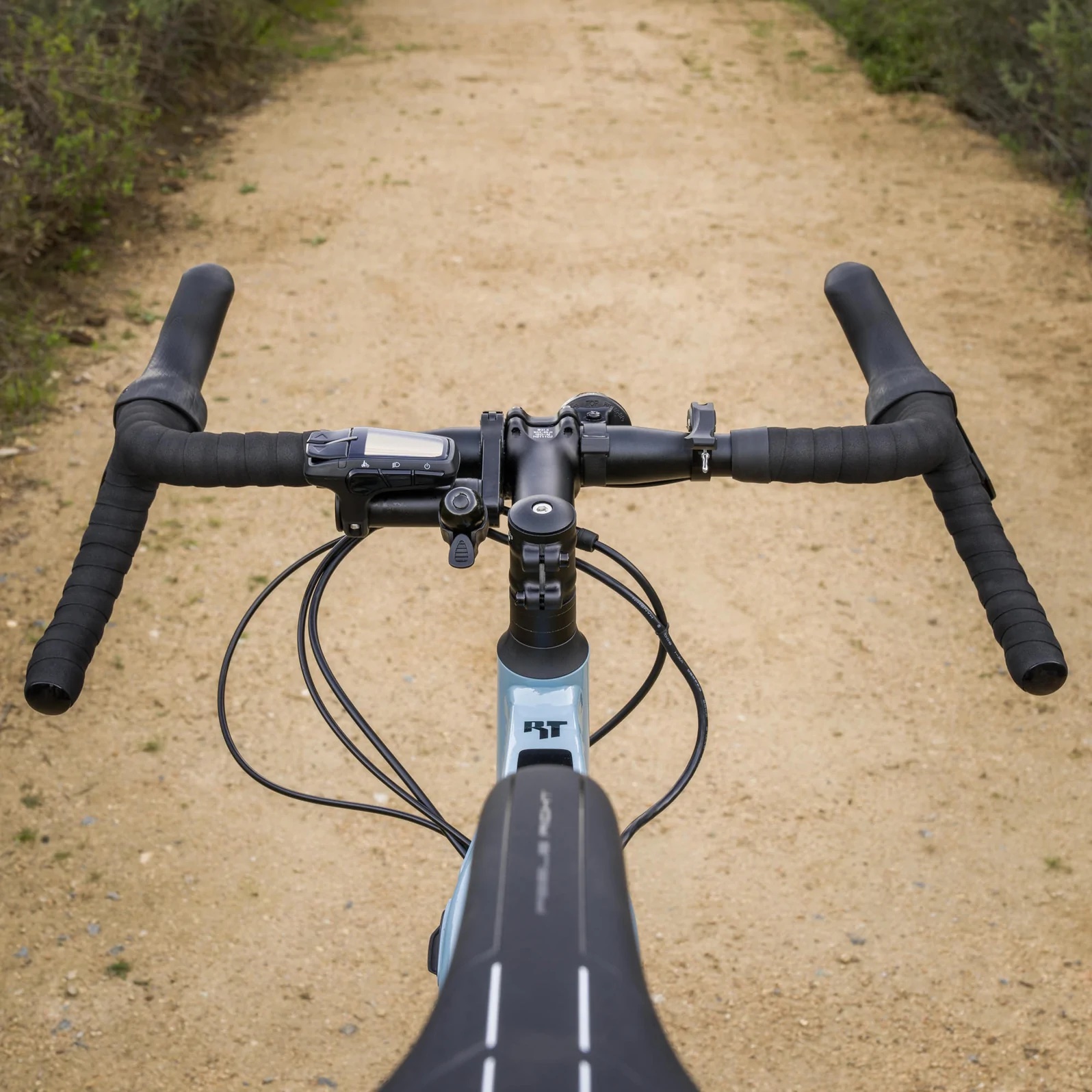

Super comfortable ergonomics and exceptional strength for stability, our wide-flare handlebar is designed with ample space to fit larger-size handlebar bags for those long-haul rides.

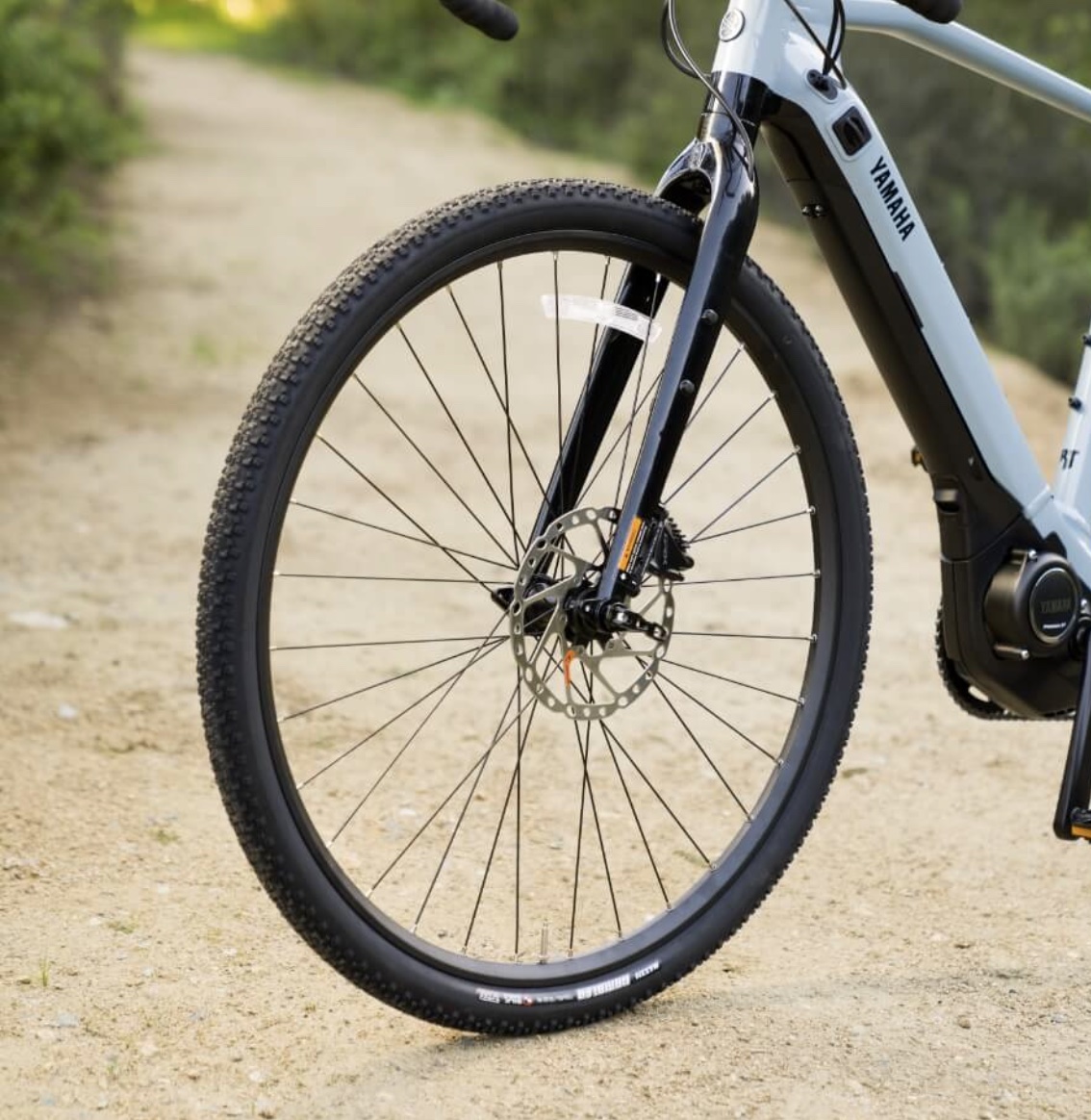

Puncture protection technology, tightly packed center-knobs and wider spaced side-knobs combine to give you excellent rolling efficiency and cornering control on pavement or hard-packed earth.

Often noted as one of the best upgrades you can make to your gravel bike, we've included it as a standard accessory to expand your capabilities on or off-road. If you're looking to explore further off the beaten path, this will be a game changer for you.

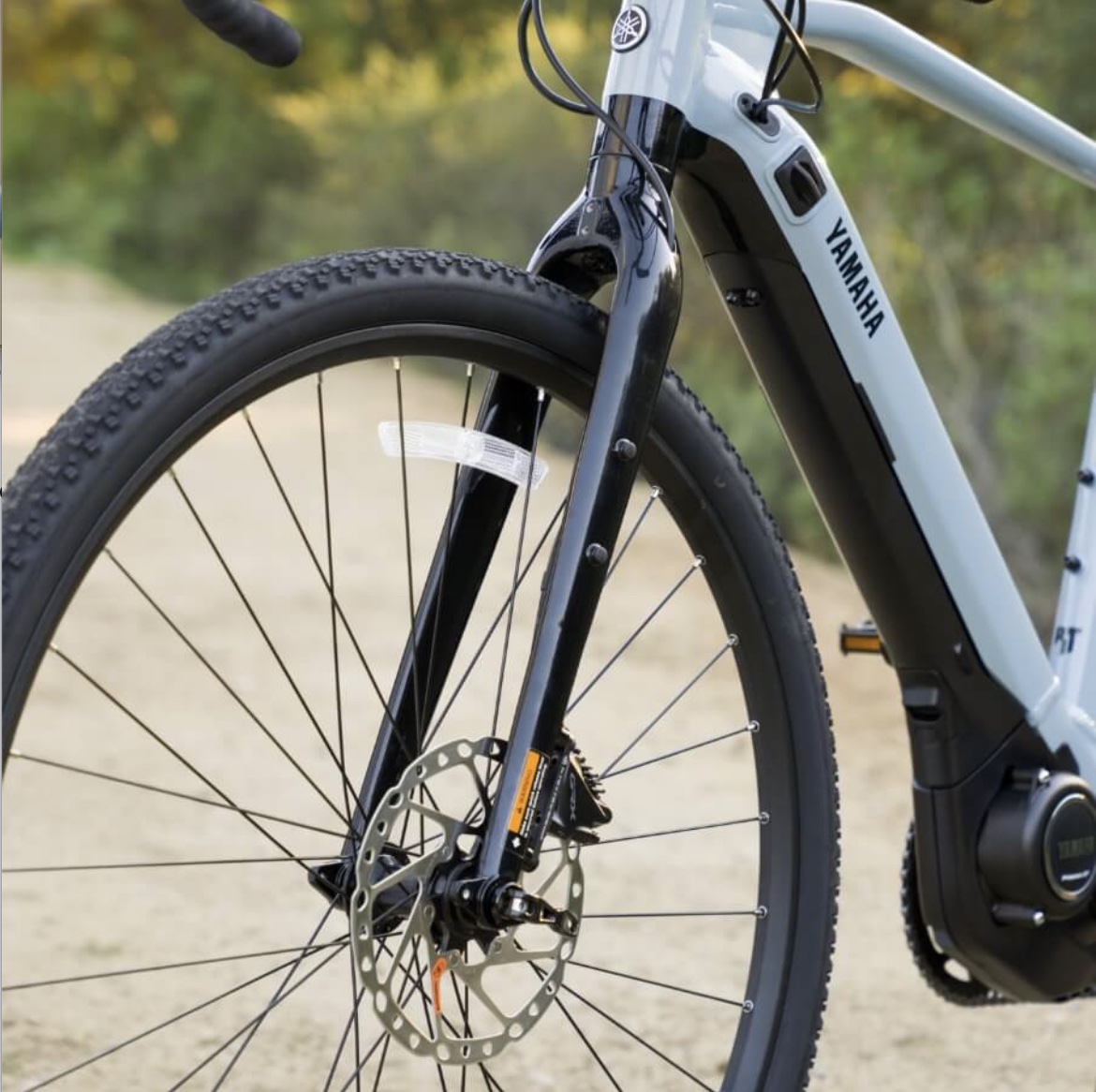

Suitable for many front rack and fender options, our fork design gives you the ability to customize your load carry capacity for pretty much anything and still has enough space for fenders to protect from harsh riding conditions.

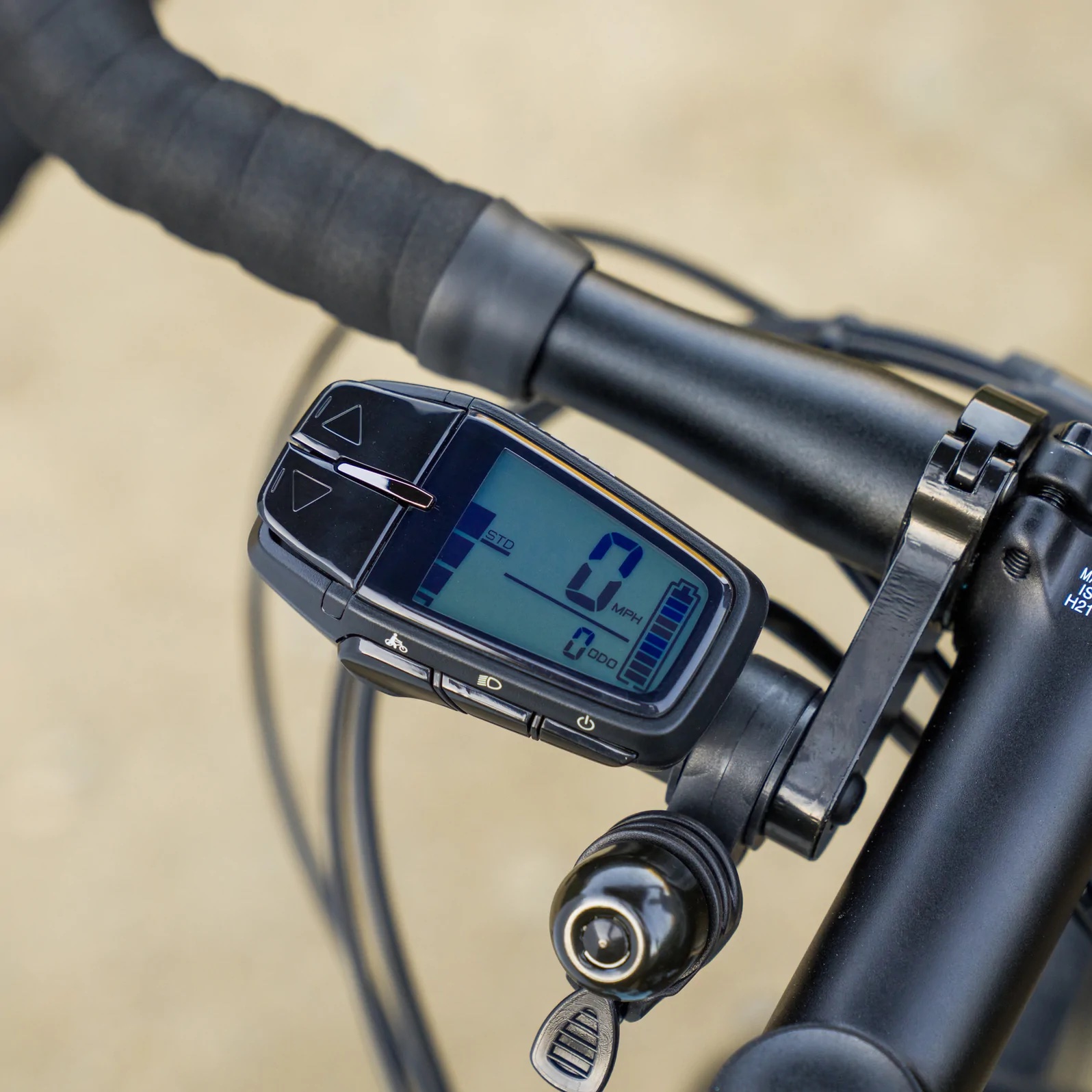

NEW Automatic Mode with 4 manual modes of smooth and powerful assist. The Display A is designed for a wide range of uses and features a simple and easy to operate display with speed and battery capacity functions.

Our Quad Sensor System with Automatic Mode combines power with stable control. Powerful enough for the steepest climbs and controllable balance and traction for exciting descents.

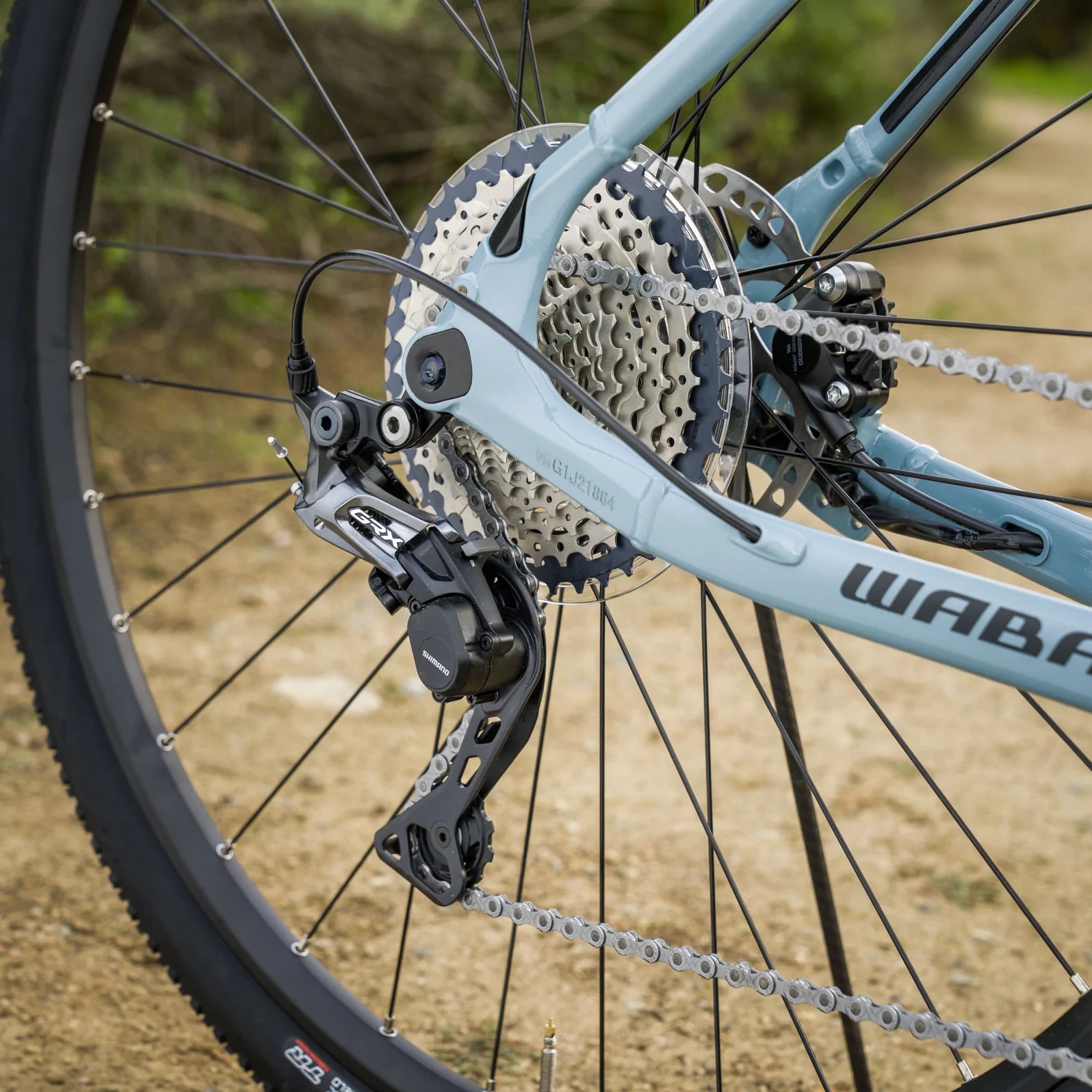

Dedicated design for gravel riding with anti-slip brake levers and a rear derailleur originally introduced for aggressive MTB which reduces chain slap, improves chain retention and minimizes the risk of hitting rocks over rough terrain.

Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

Yamaha’s proven 500 Watt-hour Lithium-ion battery pack technology is encased inside the frame with easy access to remove for charging off the bike and provides you with reliable & long-lasting energy to power your rides.

Specs

Suggested Use Gravel, Road, Adventure
Color Blue Steel
Size 54cm (S), 57cm (M), 60cm (L)
MSRP $4,199

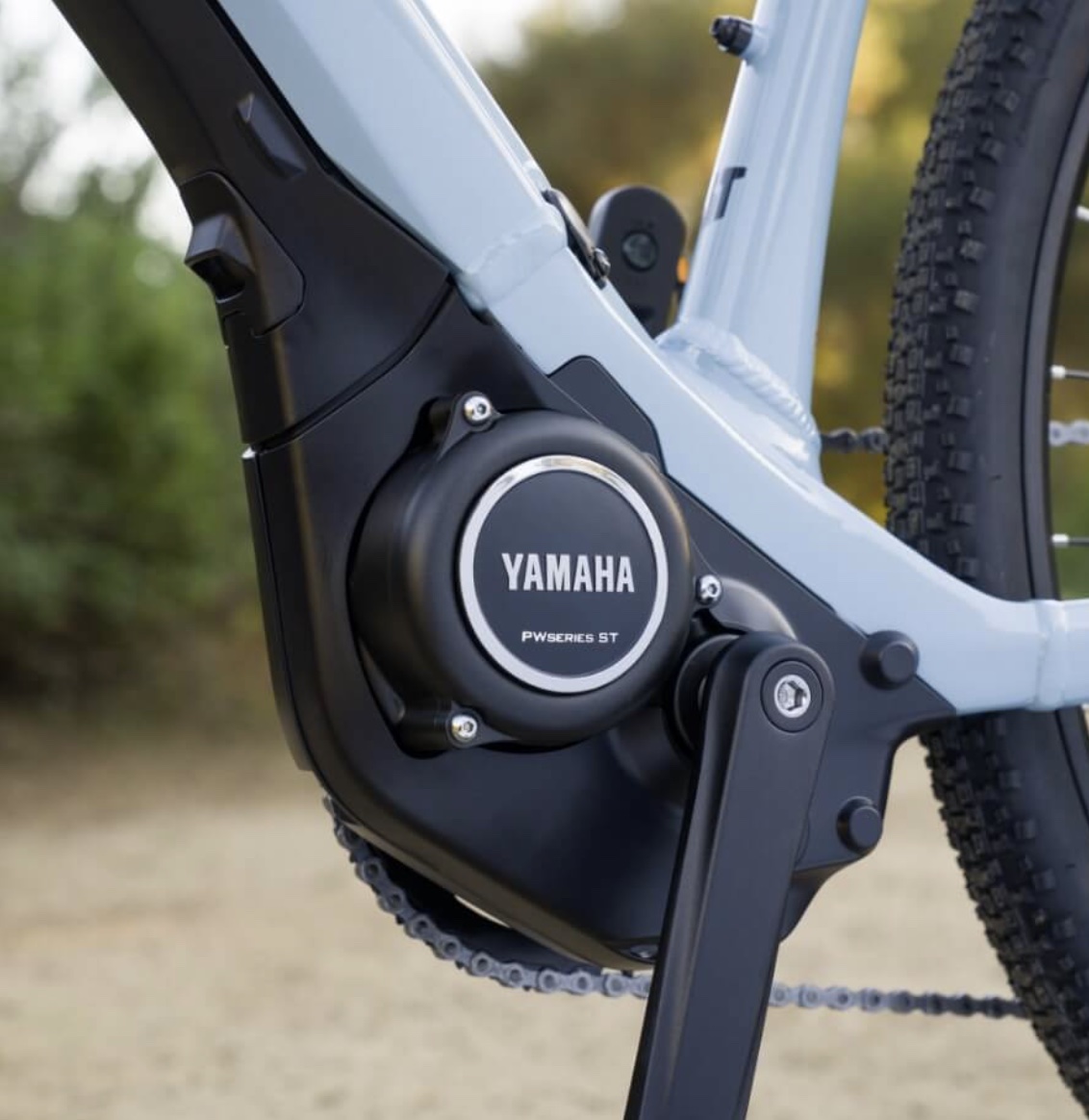

Motor Yamaha PWSeries ST; 3-bolt Mount; Square Taper Spindle; Quad Sensor System with rear hub speed sensor; Weight: 7.71lb; Rated power: 250W (Nominal), 500W (Max.); Max. torque: 70Nm; Max. speed support: 28mph; Support modes: AUTO, ECO+, ECO, STANDARD, HIGH
Control Switch Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator; Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis display; Side-exiting dock station with anti-vibration mounting plate; Weight 6.61lb; 500Wh 36V; 4-hour charge time
Frame Yamaha Hydroformed Aluminum; Integrated battery; Water bottle boss; Tapered Headtube; Internal shift/brake hose routing
Fork One-Piece Aluminum; 12x100mm Thru-Axle; Fender and rack compatible; Internal brake hose routing
Headset Integrated bearing with 30mm of spacers
Stem Yamaha Alloy; 4-bolt faceplate; 31.8 diameter; 80mm length (S) 90mm length (M) 100mm length (L)
Handlebar Flare drop; 31.8mm diameter; 44cm width
Grips/Tape Padded cork tape

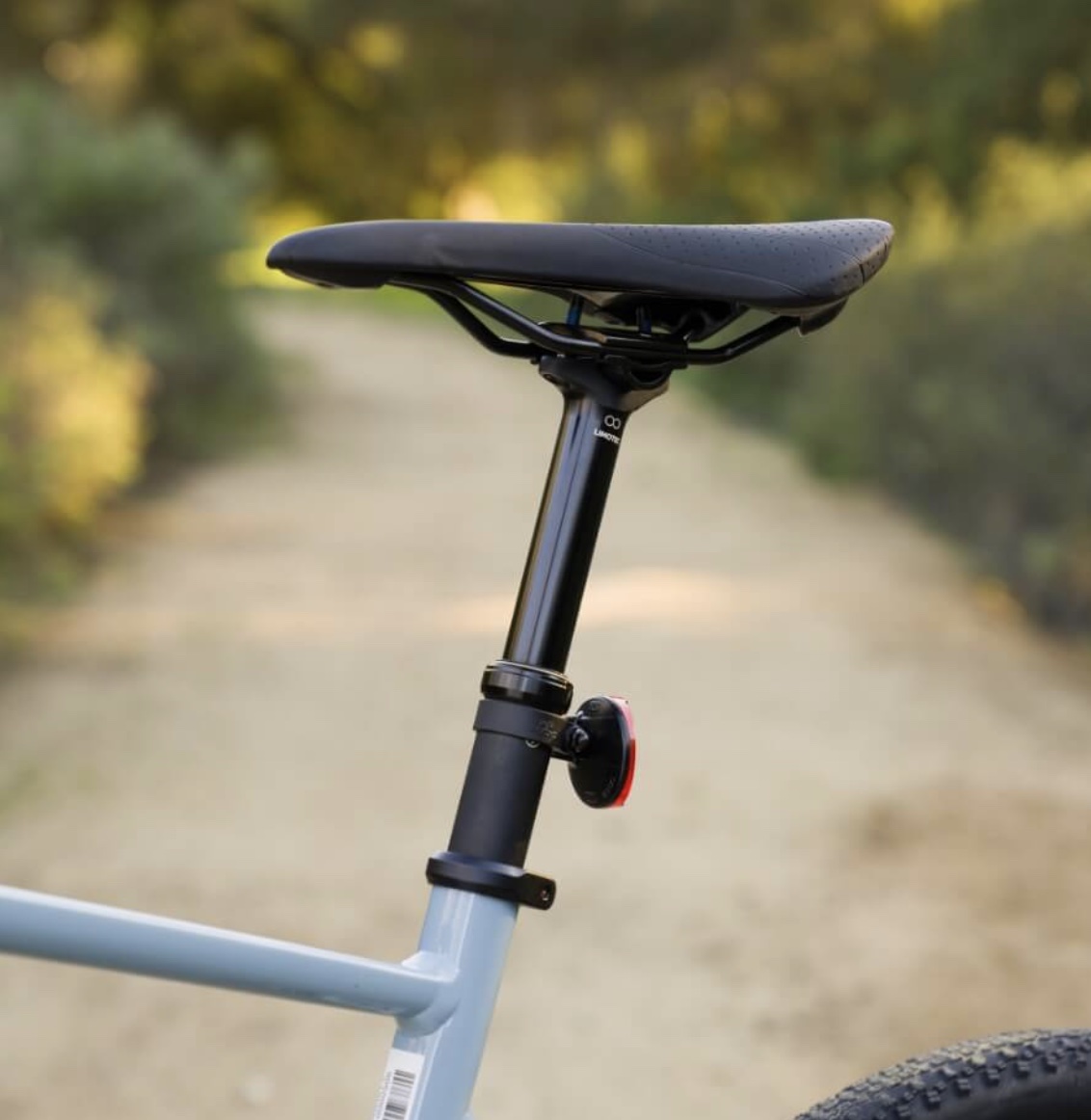

Seatpost/Saddle Clam Alloy 30.9 x 340mm (S), 395mm (M), 440mm (L) with 2-bolt adjustable tilt saddle rail clamp
Seatpost Collar Alloy 2-bolt 35.0mm
Saddle Yamaha Off-Road Cro-Mo Rail
Shifters Shimano GRX 11-speed RX600
Rear Derailleur Shimano GRX
Crankarm Square taper; 165mm (S, M) 170mm (L)
Chain KMC e11 Turbo EPT
Cassette Shimano CS-M7000; 11-42t; 11-Speed
Chainring Shimano GRX 44t

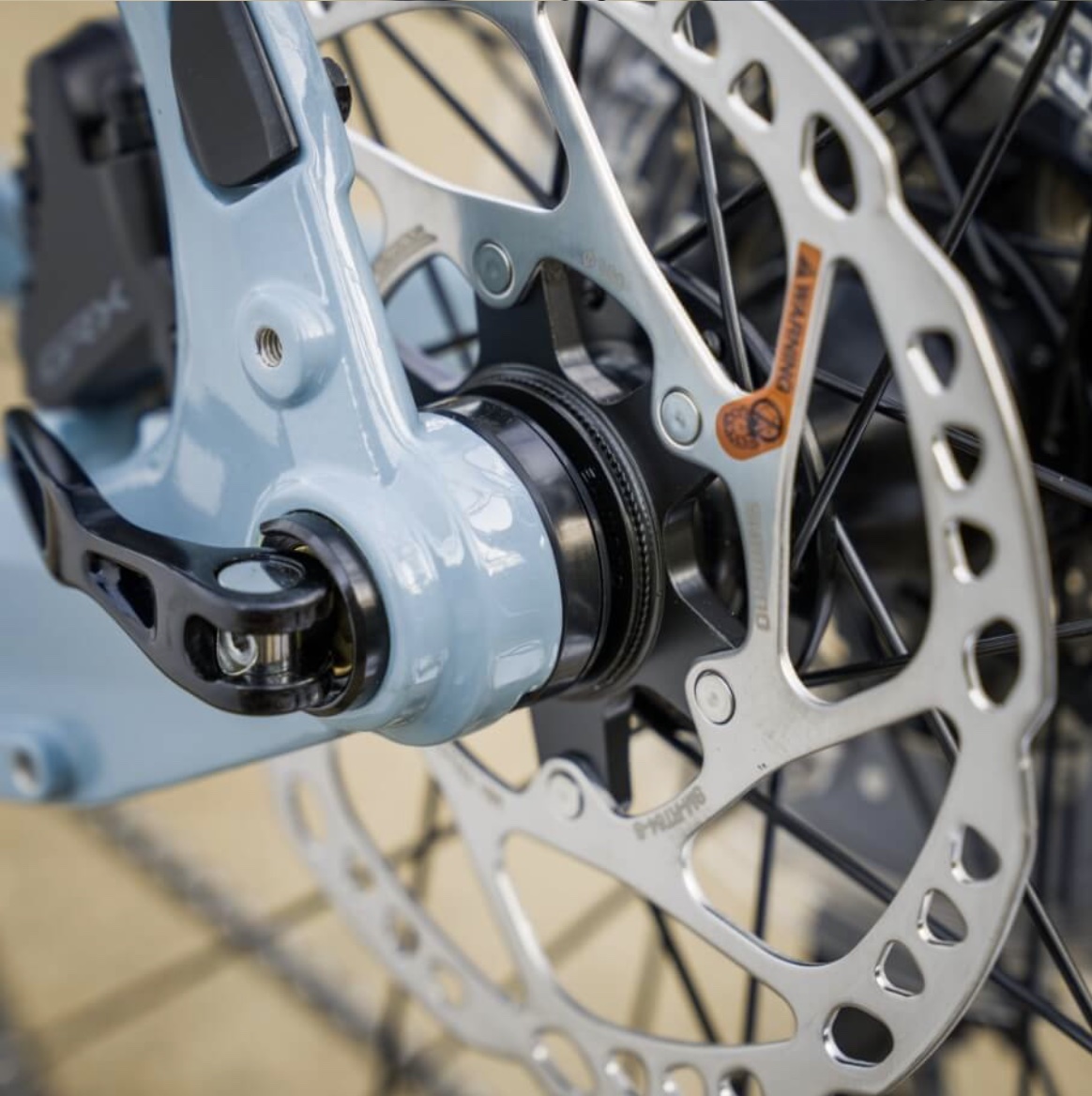

Brakes/Rotors Shimano GRX RX600-rear, RX400-front; 180mm Centerlock
Rims 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke
Spokes Spokes SUS304
Spoke Nipples SUS304 w/ brass nipple
Hubs Front: 12x100mm TA; Rear: 12x142mm TA with integrated speed sensor
Tires/Tubes Maxxis Rambler 700 x 45c TR EXO 120tpi
Accessories Yamaha keys; Yamaha battery charger; Bell
Warranty 3-Year on Frame, Drive Unit, Battery

* Subject to change without notice.

Videos

Yamaha Wabash RT

Part Numbers

Option MPN Store SKU
Medium WBSHRTMBLU 210000003865
Large WBSHRTLBLU 210000003864
