Yamaha YDX-MORO

Yamaha YDX-MORO
$3,225.00
$4,799.00
Color: Desert Yellow
Size: Select size
Please select options Unavailable

Details

As a kid, it was all about cotton candy, the giant lollipop, and taffy. Now, the stickiness you crave is for more traction on the trail. The low center of gravity and always-active suspension of the YDX-MORO will keep your tread firmly planted corner after corner after corner. Even if you're riding with your dentist.

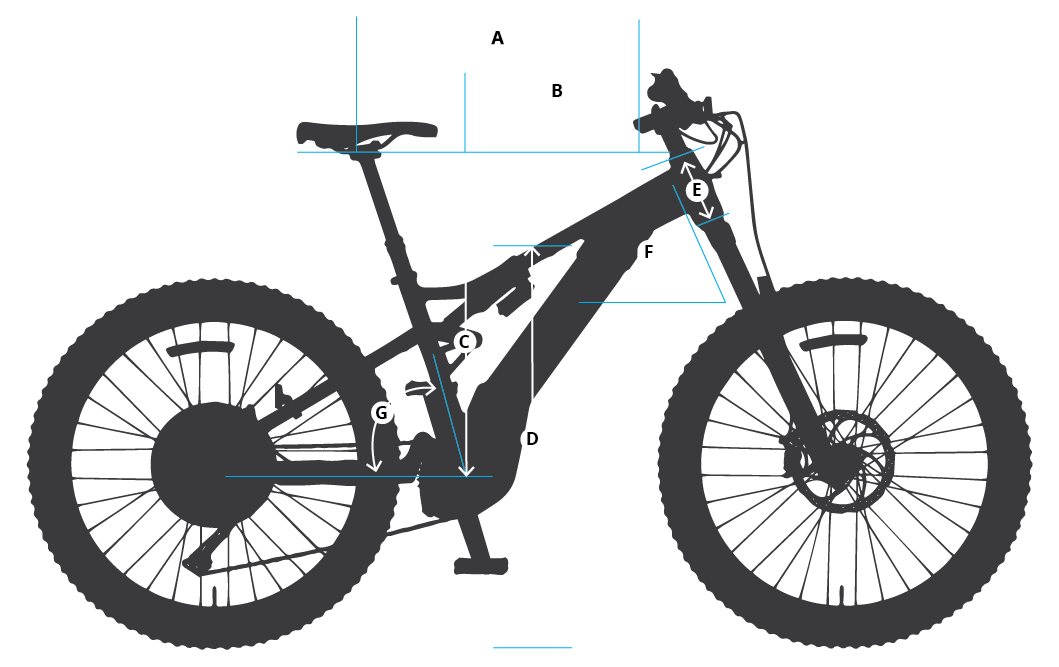

Geometry Chart:
SMALLMEDIUMLARGE
A TOP TUBE (mm) 572 619 666
B REACH LENGTH (mm) 388 432 478
C STACK HEIGHT (mm) 611 619 624
D STANDOVER HEIGHT (mm) 746 755 763
E HEAD TUBE LENGTH (mm) 111 120 125
F HEAD TUBE ANGLE 66.3° 66.3° 66.3°
G SEAT TUBE ANGLE 70.3° 70.3° 70.3°
- HANDLEBAR WIDTH (mm) 780 780 780
- CRANK ARM LENGTH (mm) 170 170 170
- SEAT POST LENGTH (mm) 412 459 459
- STEM LENGTH (mm) 40 40 40
- BB DROP (mm) 19 19 19
- REAR CENTER (mm) 469 469 469
- WHEELBASE (mm) 1157 1205 1253
- SEAT TUBE LENGTH (mm) 390 400 410
Sizes:
SizeRider Height
Small 5'1"-5'6"
Medium 5'5"-5'10"
Large 5'9"-6'7"

Specs

Motor YAMAHA PW-X2
Pedals Included
Battery Yamaha 500Wh with Charge-life indicator and Self-diagnosis displayAnti-Vibration Mounting PlateWeight: 6.61 lbs500Wh36V 4-hour charge time
Controller/Display Yamaha PW-X
Frame Yamaha Dual Twin FrameTapered headtubeInternal cable/housing routing2-bolt motor mount12 x 148 rear spacingIntegrated speed sensor harness

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Desert Yellow / Long YMOROSLYLW 210000003364
Desert Yellow / Short YMOROSSYLW 210000003362
